"Jitter is the deviation from true periodicity of a periodic signal in electronics and telecommunications, often in relation to a reference clock source."

https://en.wikipedia.org/wiki/Jitter

At a precise tempo of 120 BPM (Beats Per Minute), continuous 16th events should occur exactly 6000 samples apart from each other when captured at 48kHz.

Jitter is more commonly used to report timing errors in very rapid clock sources.

https://en.wikipedia.org/wiki/Word_clock

Rhythmic timing precision can still be reported in terms of jitter.

How we perceive rhythmic feel is a psycho-acoustic principle called Beat Induction:-

https://en.wikipedia.org/wiki/Entrainment_(biomusicology)

Our real-time perception of rhythmic feel is hard-wired to the timing stability of the events we process directly preceding what we are hearing in the moment.

Variations in the tempo stability between previously just-heard rhythmic events is what distorts our perception and expectation of rhythmic feel in the present.

Maximum Jitter as reported in the tests below is the largest rhythmic timing error measured between consecutive sixteenth step events over a continuous sixty second capture period.



750 Line 2px.png
  Roland TR-8S OS: 1.10     Sequencer: Internal Sync    > Audio Out Jitter - 8 samples (0.17ms)    External Sync- Sequencer Sync Source - Legacy MIDI Clock/GridLock II    > Audio Out Jitter - 8 samples (0.17ms) > Audio Out Lag - 110 samples (2.51ms)    External Sync - Sequencer Sync Source - USB/Gridlock II    > Audio Out Jitter - TBC > Start Lag - TBC

Roland TR-8S OS: 1.10

Sequencer: Internal Sync

> Audio Out Jitter - 8 samples (0.17ms)

External Sync- Sequencer
Sync Source - Legacy MIDI Clock/GridLock II


> Audio Out Jitter - 8 samples (0.17ms)
> Audio Out Lag - 110 samples (2.51ms)

External Sync - Sequencer
Sync Source - USB/Gridlock II


> Audio Out Jitter - TBC
> Start Lag - TBC

750 Line 2px.png
  Akai MPC-3000 OS - Vailixi 3.51     Internal Sync - Sequencer    > Audio Out Jitter - 5 samples (0.10ms) > MIDI TX Jitter - 1 sample (0.02ms)    External Sync - Sequencer Sync Source - Legacy MIDI Clock/Gridlock II    > Audio Out Jitter - 12 samples (0.25ms) > MIDI TX Jitter - 26 samples (0.54ms) > Start Lag - TBC

Akai MPC-3000 OS - Vailixi 3.51

Internal Sync - Sequencer

> Audio Out Jitter - 5 samples (0.10ms)
> MIDI TX Jitter - 1 sample (0.02ms)

External Sync - Sequencer
Sync Source - Legacy MIDI Clock/Gridlock II

> Audio Out Jitter - 12 samples (0.25ms)
> MIDI TX Jitter - 26 samples (0.54ms)
> Start Lag - TBC

750 Line 2px.png
  Akai MPC-60     Internal Sync - Sequencer    > Audio Out Jitter - 18 samples (0.37ms) > MIDI TX Jitter - 1 sample (0.02ms)    External Sync - Sequencer Sync Source - Legacy MIDI Clock/Gridlock II    > Audio Out Jitter - 48 samples (1.00ms) > MIDI TX Jitter - 16 samples (0.33ms) > Start Lag - TBC

Akai MPC-60

Internal Sync - Sequencer

> Audio Out Jitter - 18 samples (0.37ms)
> MIDI TX Jitter - 1 sample (0.02ms)

External Sync - Sequencer
Sync Source - Legacy MIDI Clock/Gridlock II

> Audio Out Jitter - 48 samples (1.00ms)
> MIDI TX Jitter - 16 samples (0.33ms)
> Start Lag - TBC

750 Line 2px.png
  Akai MPC-4000     Internal Sync - Sequencer    > Audio Out Jitter - 1 samples (0.02ms) > MIDI TX Jitter - 3 samples (0.06ms)    External Sync - Sequencer Sync Source - Legacy MIDI Clock/Gridlock II    > Audio Out Jitter - 29 samples (0.60ms) > MIDI TX Jitter - 29 samples (0.60ms) > Start Lag - TBC

Akai MPC-4000

Internal Sync - Sequencer

> Audio Out Jitter - 1 samples (0.02ms)
> MIDI TX Jitter - 3 samples (0.06ms)

External Sync - Sequencer
Sync Source - Legacy MIDI Clock/Gridlock II

> Audio Out Jitter - 29 samples (0.60ms)
> MIDI TX Jitter - 29 samples (0.60ms)
> Start Lag - TBC

750 Line 2px.png
  Elektron Digitakt - OS: 1.10     Internal Sync - Sequencer    > Audio Out Jitter - 32 samples (0.67ms) > MIDI TX Jitter - TBC    External Sync - Sequencer Sync Source - Legacy MIDI Clock/Gridlock II    > Audio Out Jitter - 32 samples (0.67ms) > Audio Out Lag - 94 samples (1.96ms) > MIDI TX Jitter - TBC > MIDI TX Lag - 46 samples (0.91ms)    External Sync - Sequencer Sync Source - USB MIDI Clock/Gridlock II    > Audio Out Jitter - TBC > MIDI TX Jitter - TBC > Start Lag - TBC    Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC    Sound Module Note Source - USB/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC

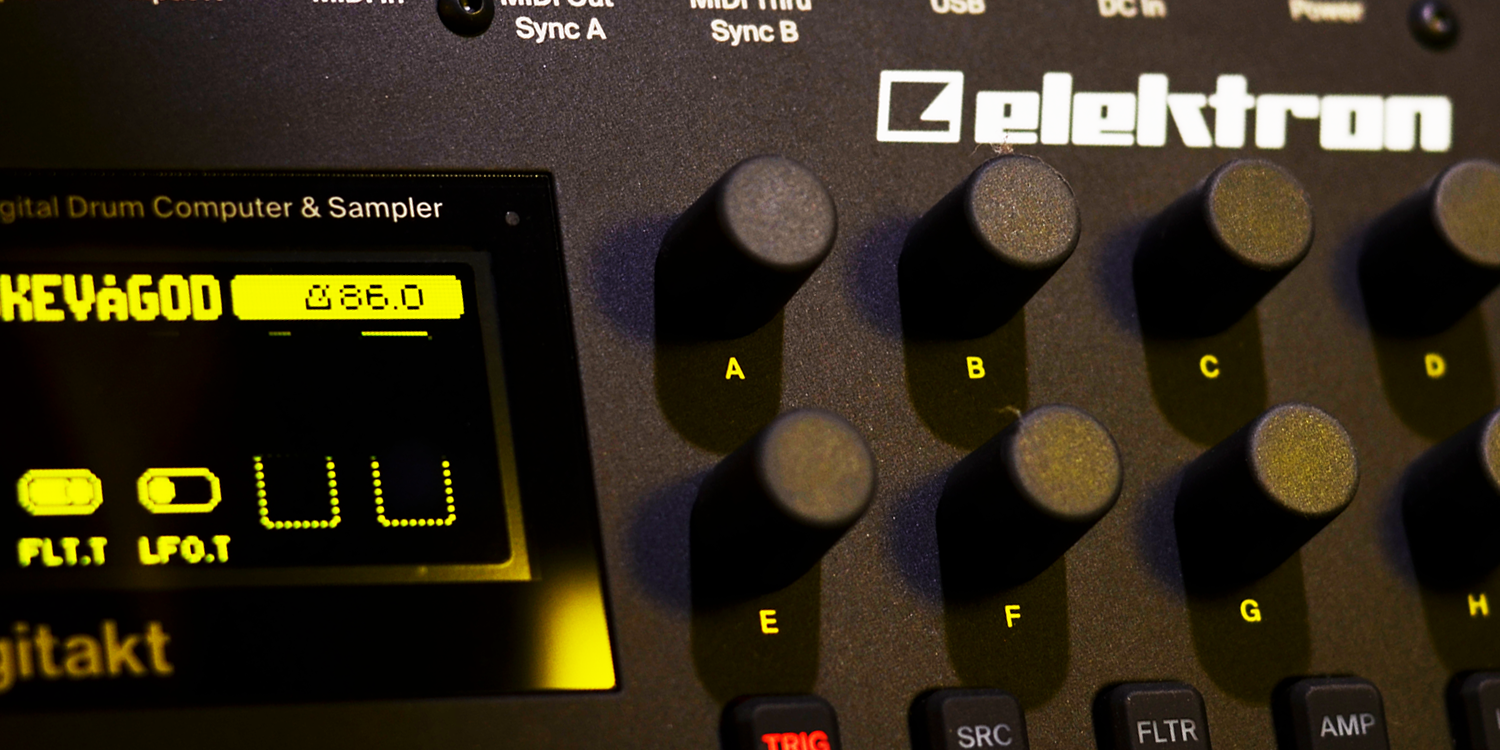

Elektron Digitakt - OS: 1.10

Internal Sync - Sequencer

> Audio Out Jitter - 32 samples (0.67ms)
> MIDI TX Jitter - TBC

External Sync - Sequencer
Sync Source - Legacy MIDI Clock/Gridlock II

> Audio Out Jitter - 32 samples (0.67ms)
> Audio Out Lag - 94 samples (1.96ms)
> MIDI TX Jitter - TBC
> MIDI TX Lag - 46 samples (0.91ms)

External Sync - Sequencer
Sync Source - USB MIDI Clock/Gridlock II

> Audio Out Jitter - TBC
> MIDI TX Jitter - TBC
> Start Lag - TBC

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

Sound Module
Note Source - USB/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC



750 Line 2px.png
  Sequentix Cirklon - OS:TBC     Internal Sync    > MIDI TX Jitter - 3 samples (0.06) > Gate TX Jitter - 3 samples (0.06)    External Sync     Sync Source - Legacy MIDI Clock/Gridlock II    > MIDI TX Jitter - 3 samples (0.06) > Gate TX Jitter - 3 samples (0.06) > Start Lag - 40 samples (0.83ms)

Sequentix Cirklon - OS:TBC

Internal Sync

> MIDI TX Jitter - 3 samples (0.06)
> Gate TX Jitter - 3 samples (0.06)

External Sync
Sync Source - Legacy MIDI Clock/Gridlock II

> MIDI TX Jitter - 3 samples (0.06)
> Gate TX Jitter - 3 samples (0.06)
> Start Lag - 40 samples (0.83ms)



750 Line 2px.png
  Linn Electronics LM-1     Internal Sync    > Audio Out Jitter - 9 samples (0.12ms)    External Sync Sync Source - 48ppq Clock/Gridlock II    > Audio Out Jitter - 9 samples (0.12ms) > Start Lag - TBC

Linn Electronics LM-1

Internal Sync

> Audio Out Jitter - 9 samples (0.12ms)

External Sync
Sync Source - 48ppq Clock/Gridlock II


> Audio Out Jitter - 9 samples (0.12ms)
> Start Lag - TBC



750 Line 2px.png
  Roland CR-78     Internal Sync    > Audio Out Jitter - 2 samples (0.04ms)    External Sync Sync Source - 12ppq Clock/Gridlock II    > Audio Out Jitter - 2 samples (0.04ms) > Start Lag - TBC

Roland CR-78

Internal Sync

> Audio Out Jitter - 2 samples (0.04ms)

External Sync
Sync Source - 12ppq Clock/Gridlock II


> Audio Out Jitter - 2 samples (0.04ms)
> Start Lag - TBC



750 Line 2px.png
  Korg SQ-1     Internal Sync    > Gate TX Jitter - 50 samples (1.04ms) > MIDI TX Jitter - 50 samples (1.04ms) > MIDI Clock TX Jitter - 50 samples (1.04ms)    External Sync Sync Source - Legacy MIDI Clock/Gridlock II    > Korg Sync TX Jitter - Zero samples (0.00ms) > Gate TX Jitter - Zero samples (0.00ms) > MIDI TX Jitter - Zero samples (0.00ms) > Start Lag - 12 samples (0.25ms)    External Sync Sync Source - USB MIDI Clock/Gridlock II    > Audio Out Jitter - TBC > MIDI TX Jitter - TBC > Start Lag - TBC

Korg SQ-1

Internal Sync

> Gate TX Jitter - 50 samples (1.04ms)
> MIDI TX Jitter - 50 samples (1.04ms)
> MIDI Clock TX Jitter - 50 samples (1.04ms)

External Sync
Sync Source - Legacy MIDI Clock/Gridlock II

> Korg Sync TX Jitter - Zero samples (0.00ms)
> Gate TX Jitter - Zero samples (0.00ms)
> MIDI TX Jitter - Zero samples (0.00ms)
> Start Lag - 12 samples (0.25ms)

External Sync
Sync Source - USB MIDI Clock/Gridlock II

> Audio Out Jitter - TBC
> MIDI TX Jitter - TBC
> Start Lag - TBC

750 Line 2px.png
  Yamaha DX-200     Internal Sync    > Audio Out Jitter - TBC    External Sync Sync Source - Legacy MIDI Clock/Gridlock II    > Audio Out Jitter - TBC > Start Lag - TBC

Yamaha DX-200

Internal Sync

> Audio Out Jitter - TBC

External Sync
Sync Source - Legacy MIDI Clock/Gridlock II


> Audio Out Jitter - TBC
> Start Lag - TBC

750 Line 2px.png
  Alesis Andromeda A6     Internal Sync - Arpeggiator    > Audio Out Jitter - 116 samples (2.42ms)    External Sync - Arpeggiator Sync Source - Legacy MIDI Clock/Gridlock II    > Audio Out Jitter - 116 samples (2.42ms) > Start Lag - TBC

Alesis Andromeda A6

Internal Sync - Arpeggiator

> Audio Out Jitter - 116 samples (2.42ms)

External Sync - Arpeggiator
Sync Source - Legacy MIDI Clock/Gridlock II


> Audio Out Jitter - 116 samples (2.42ms)
> Start Lag - TBC



750 Line 2px.png
  Analogics ACS TM-116     External Sync Sync Source - Clock/Gridlock II    > Trigger/Gate TX Jitter - Zero samples (0.00ms) > Start Lag - Zero samples (0.00ms)

Analogics ACS TM-116

External Sync
Sync Source - Clock/Gridlock II

> Trigger/Gate TX Jitter - Zero samples (0.00ms)
> Start Lag - Zero samples (0.00ms)



750 Line 2px.png
  Friend-Chip SRC MK1     Internal Sync    > Clock TX Jitter - Zero samples (0.00ms) > MIDI Clock TX Jitter - Zero samples (0.00ms)    External Sync Sync Source - Clock/Gridlock II    > Clock RX to Clock TX Jitter - Zero samples (0.00ms) > Processing Latency: Zero samples (0.00ms) > Start Lag - Zero samples (0.00ms)

Friend-Chip SRC MK1

Internal Sync

> Clock TX Jitter - Zero samples (0.00ms)
> MIDI Clock TX Jitter - Zero samples (0.00ms)

External Sync
Sync Source - Clock/Gridlock II

> Clock RX to Clock TX Jitter - Zero samples (0.00ms)
> Processing Latency: Zero samples (0.00ms)
> Start Lag - Zero samples (0.00ms)



500 x 3 white line 1px neg 100 B.png
  Korg KMP-68   > MIDI RX to MIDI TX - Zero samples (0.00ms) > Processing Latency - Zero samples (0.00ms)

Korg KMP-68

> MIDI RX to MIDI TX - Zero samples (0.00ms)
> Processing Latency - Zero samples (0.00ms)



750 Line 2px.png
  Hinton MIDIX   > MIDI RX to MIDI TX Jitter - Zero samples (0.00ms) > Processing Latency: Zero samples (0.00ms)

Hinton MIDIX

> MIDI RX to MIDI TX Jitter - Zero samples (0.00ms)
> Processing Latency: Zero samples (0.00ms)



750 Line 2px.png
  Yamaha CS-30M     Sound Module Note Source - Gate/Gridlock II    > Gate RX to Audio Out Jitter - TBC > Average Latency - TBC

Yamaha CS-30M

Sound Module
Note Source - Gate/Gridlock II

> Gate RX to Audio Out Jitter - TBC
> Average Latency - TBC

750 Line 2px.png
  Roland Planet-P/MKS-10     Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - Zero samples (0.00ms) > Average Latency - 100 samples (2.08ms)

Roland Planet-P/MKS-10

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - Zero samples (0.00ms)
> Average Latency - 100 samples (2.08ms)



750 Line 2px.png

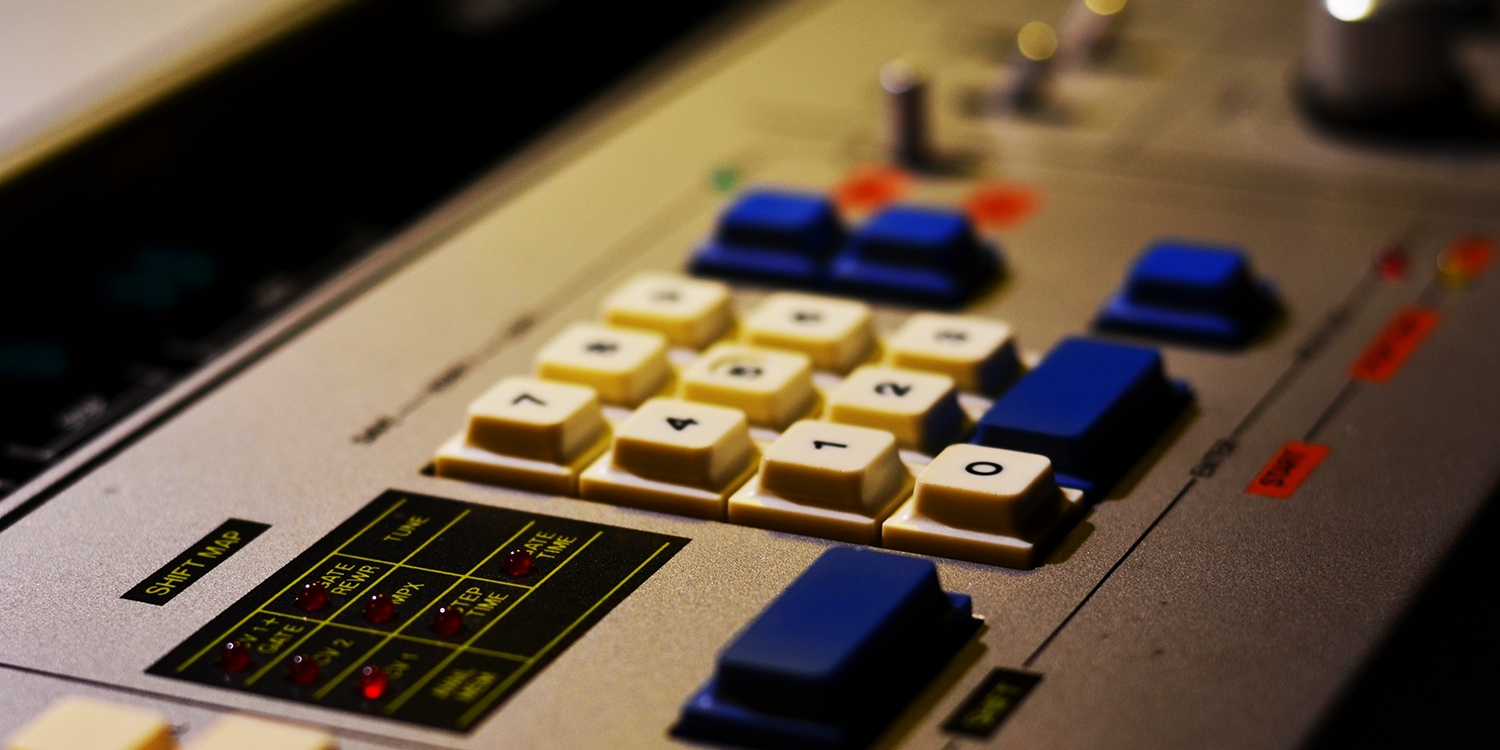

  Roland MC-4B     Internal Sync    > Gate TX Jitter - 25 samples (0.52ms)    External Sync Sync Source - Din-Sync/Gridlock II    > Gate TX Jitter - 34 samples (0.71ms) > Start Lag - TBC

Roland MC-4B

Internal Sync

> Gate TX Jitter - 25 samples (0.52ms)

External Sync
Sync Source - Din-Sync/Gridlock II

> Gate TX Jitter - 34 samples (0.71ms)
> Start Lag - TBC

750 Line 2px.png
  Simmons Digital Clap Trap     Sound Module Source Trigger - Trigger/Gridlock II    > Trigger RX to Audio Out Jitter - TBC > Average Latency - TBC

Simmons Digital Clap Trap

Sound Module
Source Trigger - Trigger/Gridlock II

> Trigger RX to Audio Out Jitter - TBC
> Average Latency - TBC

750 Line 2px.png
  Roland SE-02 OS: TBC     Internal Sync - Sequencer    > Audio Out Jitter - TBC    External Sync- Sequencer Sync Source - Legacy MIDI Clock/GridLock II    > Audio Out Jitter - 95 samples (1.98ms) > Start Lag - 240 samples (4.99ms)    External Sync - Sequencer Sync Source - USB/Gridlock II    > Audio Out Jitter - TBC > Start Lag - TBC    Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - 68 samples (1.42ms) > Average Latency - 205 samples (4.28ms)    Sound Module Note Source - USB/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC

Roland SE-02 OS: TBC

Internal Sync - Sequencer

> Audio Out Jitter - TBC

External Sync- Sequencer
Sync Source - Legacy MIDI Clock/GridLock II


> Audio Out Jitter - 95 samples (1.98ms)
> Start Lag - 240 samples (4.99ms)

External Sync - Sequencer
Sync Source - USB/Gridlock II


> Audio Out Jitter - TBC
> Start Lag - TBC

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - 68 samples (1.42ms)
> Average Latency - 205 samples (4.28ms)

Sound Module
Note Source - USB/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

750 Line 2px.png
  Roland TR-8 OS: TBC     Sequencer: Internal Sync    > Audio Out Jitter - 101 samples (2.10ms)    External Sync- Sequencer Sync Source - Legacy MIDI Clock/GridLock II    > Audio Out Jitter - 189 samples (3.94ms) > Start Lag - TBC    External Sync - Sequencer Sync Source - USB/Gridlock II    > Audio Out Jitter - TBC > Start Lag - TBC

Roland TR-8 OS: TBC

Sequencer: Internal Sync

> Audio Out Jitter - 101 samples (2.10ms)

External Sync- Sequencer
Sync Source - Legacy MIDI Clock/GridLock II


> Audio Out Jitter - 189 samples (3.94ms)
> Start Lag - TBC

External Sync - Sequencer
Sync Source - USB/Gridlock II


> Audio Out Jitter - TBC
> Start Lag - TBC

  Access Virus TI2 OS: TBC     Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - 17 samples (0.35ms) > Average Latency - 306 samples (6.37ms)    Sound Module Note Source - USB/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC

Access Virus TI2 OS: TBC

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - 17 samples (0.35ms)
> Average Latency - 306 samples (6.37ms)

Sound Module
Note Source - USB/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC



750 Line 2px.png
  Waldorf Rocket     Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC    Sound Module Note Source - USB/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC

Waldorf Rocket

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

Sound Module
Note Source - USB/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

750 Line 2px.png
  Roland TR-08 OS: TBC     External Sync- Sequencer Sync Source - Legacy MIDI Clock/GridLock II    > Audio Out Jitter - 40 samples (0.83ms) > Start Lag - 116 samples (2.42ms)    External Sync - Sequencer Sync Source - USB/Gridlock II    > Audio Out Jitter - TBC > Start Lag - TBC    Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC    Sound Module Note Source - USB/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC

Roland TR-08 OS: TBC

External Sync- Sequencer
Sync Source - Legacy MIDI Clock/GridLock II


> Audio Out Jitter - 40 samples (0.83ms)
> Start Lag - 116 samples (2.42ms)

External Sync - Sequencer
Sync Source - USB/Gridlock II


> Audio Out Jitter - TBC
> Start Lag - TBC

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

Sound Module
Note Source - USB/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

750 Line 2px.png

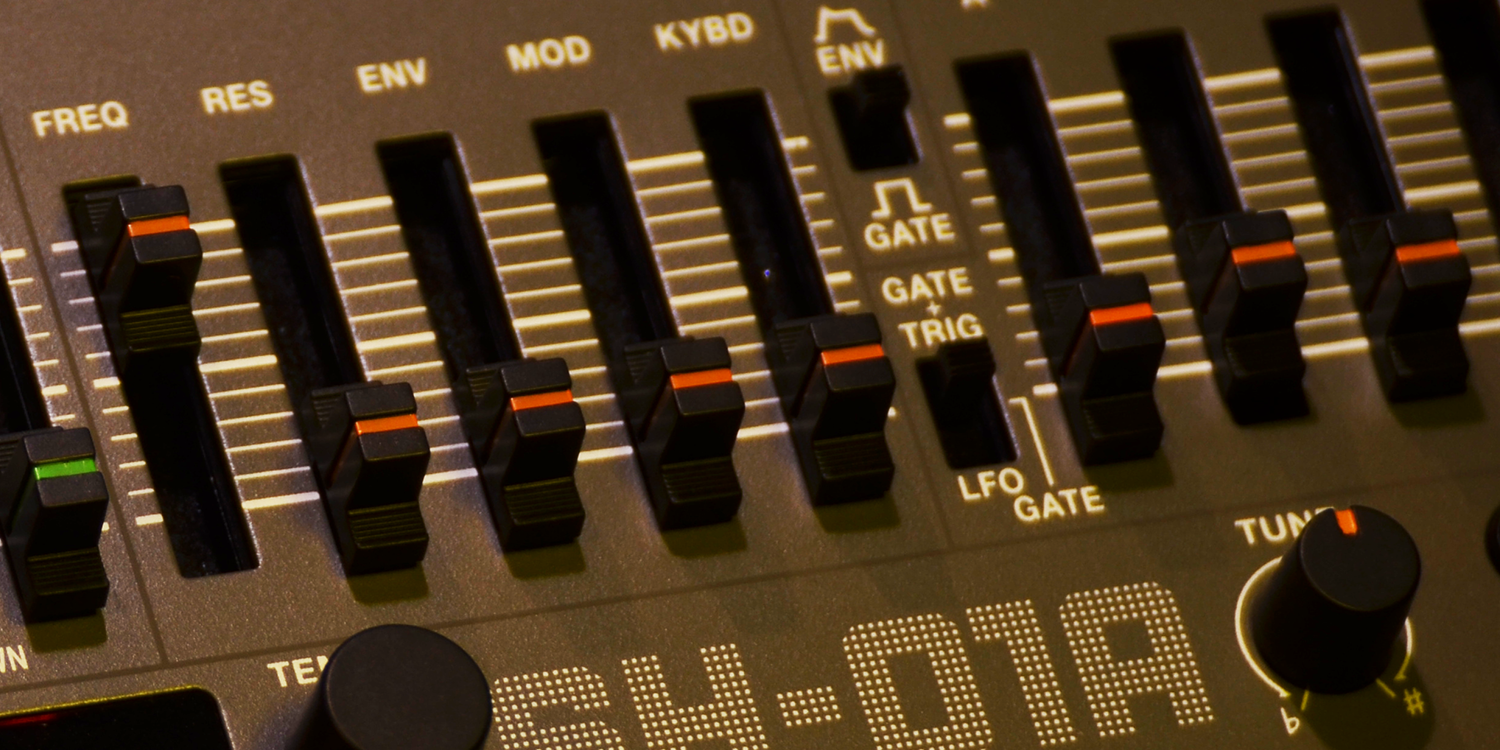

  Roland SH-01A OS: TBC     External Sync- Sequencer Sync Source - Legacy MIDI Clock/GridLock II    > Audio Out Jitter - 65 samples (1.35ms) > Start Lag - 215 samples (4.48ms)    External Sync - Sequencer Sync Source - USB/Gridlock II    > Audio Out Jitter - TBC > Start Lag - TBC    External Sync- Sequencer Sync Source - Clock/GridLock II    > Audio Out Jitter - 53 samples (1.10ms) > Start Lag - 159 samples (3.32ms)    Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC    Sound Module Note Source - USB/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC

Roland SH-01A OS: TBC

External Sync- Sequencer
Sync Source - Legacy MIDI Clock/GridLock II


> Audio Out Jitter - 65 samples (1.35ms)
> Start Lag - 215 samples (4.48ms)

External Sync - Sequencer
Sync Source - USB/Gridlock II


> Audio Out Jitter - TBC
> Start Lag - TBC

External Sync- Sequencer
Sync Source - Clock/GridLock II


> Audio Out Jitter - 53 samples (1.10ms)
> Start Lag - 159 samples (3.32ms)

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

Sound Module
Note Source - USB/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

750 Line 2px.png
  Roland TR-09 OS: TBC     External Sync- Sequencer Sync Source - Legacy MIDI Clock/GridLock II    > Audio Out Jitter - 14 samples (0.31ms) > Start Lag - 140 samples (2.92ms)    External Sync - Sequencer Sync Source - USB/Gridlock II    > Audio Out Jitter - TBC > Start Lag - TBC    Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC    Sound Module Note Source - USB/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC

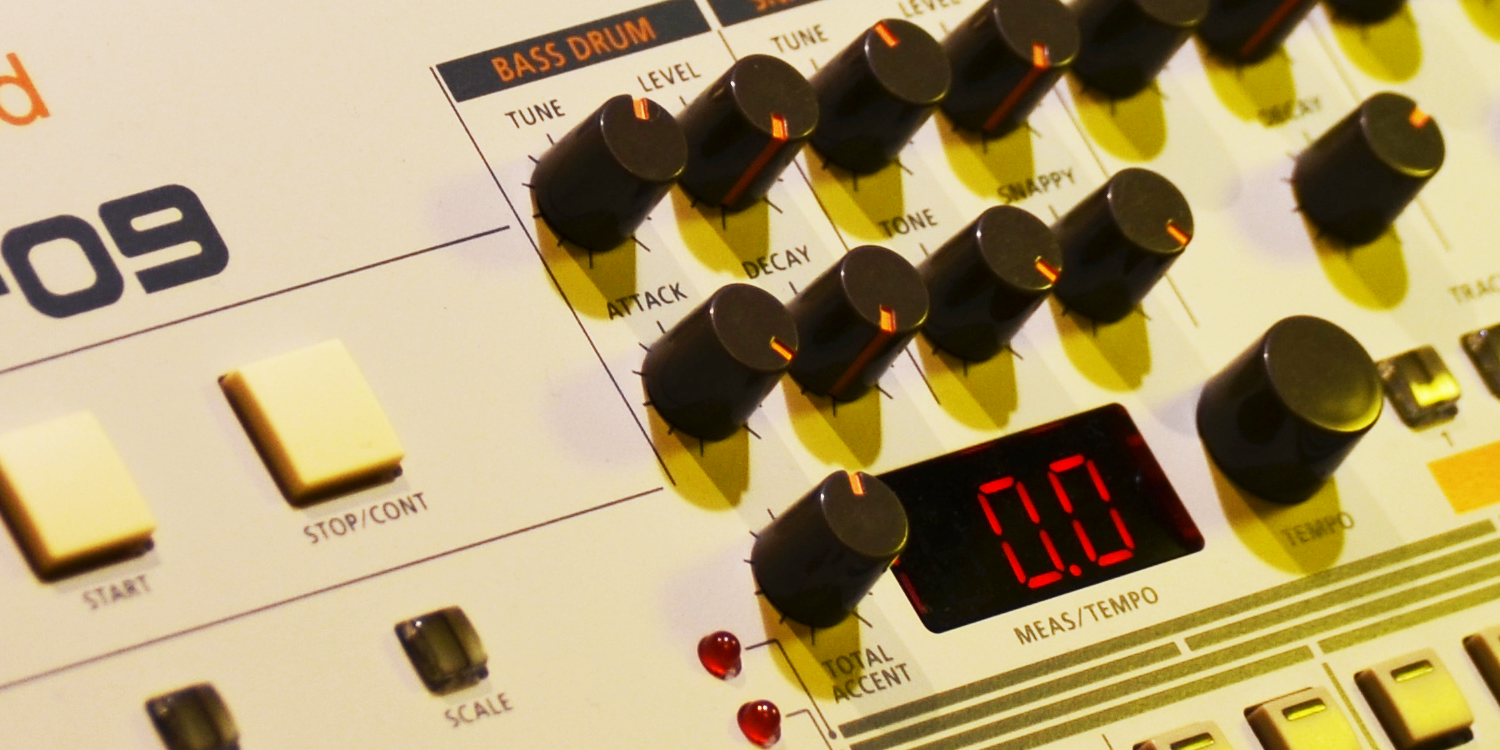

Roland TR-09 OS: TBC

External Sync- Sequencer
Sync Source - Legacy MIDI Clock/GridLock II


> Audio Out Jitter - 14 samples (0.31ms)
> Start Lag - 140 samples (2.92ms)

External Sync - Sequencer
Sync Source - USB/Gridlock II


> Audio Out Jitter - TBC
> Start Lag - TBC

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

Sound Module
Note Source - USB/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

750 Line 2px.png
  Elektron - Analog RYTM MK1 - OS: TBC     Internal Sync - Sequencer    > Audio Out Jitter - 32 samples (0.67ms)    External Sync - Sequencer Sync Source - Legacy MIDI Clock/Gridlock II    > Audio Out Jitter - 32 samples (0.67ms) > Start Lag - 152 samples (3.17ms)    External Sync - Sequencer Sync Source - USB MIDI Clock/Gridlock II    > Audio Out Jitter - TBC > Start Lag - TBC    Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - 20 samples (0.42ms) > Average Latency - 174 samples (3.62ms)    Sound Module Note Source - USB/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC

Elektron - Analog RYTM MK1 - OS: TBC

Internal Sync - Sequencer

> Audio Out Jitter - 32 samples (0.67ms)

External Sync - Sequencer
Sync Source - Legacy MIDI Clock/Gridlock II

> Audio Out Jitter - 32 samples (0.67ms)
> Start Lag - 152 samples (3.17ms)

External Sync - Sequencer
Sync Source - USB MIDI Clock/Gridlock II

> Audio Out Jitter - TBC
> Start Lag - TBC

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - 20 samples (0.42ms)
> Average Latency - 174 samples (3.62ms)

Sound Module
Note Source - USB/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

750 Line 2px.png
  Yamaha TX-816     Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - 6 samples (0.12ms) > Average Latency: 136 samples (2.84ms)

Yamaha TX-816

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - 6 samples (0.12ms)
> Average Latency: 136 samples (2.84ms)



750 Line 2px.png
  Roland TR-606     Sequencer: Internal Sync    > Audio Out Jitter - 104 samples (2.17ms)    External Sync- Sequencer Sync Source - Din-Sync/GridLock II    > Audio Out Jitter - 105 samples (2.19ms) > Start Lag - TBC

Roland TR-606

Sequencer: Internal Sync

> Audio Out Jitter - 104 samples (2.17ms)

External Sync- Sequencer
Sync Source - Din-Sync/GridLock II


> Audio Out Jitter - 105 samples (2.19ms)
> Start Lag - TBC

750 Line 2px.png
  Kawai R100     Sequencer: Internal Sync    > Audio Out Jitter - 52 samples (1.08ms)    External Sync- Sequencer Sync Source - Din-Sync/GridLock II    > Audio Out Jitter - Zero Samples (0.00ms) > Start Lag - TBC    External Sync - Sequencer Sync Source - Legacy MIDI Clock/Gridlock II    > Audio Out Jitter - 4 samples (0.08ms) > Start Lag - TBC    External Sync - Sequencer Sync Source - Clock/Gridlock II    > Audio Out Jitter - Zero Samples (0.00ms) > Start Lag - TBC

Kawai R100

Sequencer: Internal Sync

> Audio Out Jitter - 52 samples (1.08ms)

External Sync- Sequencer
Sync Source - Din-Sync/GridLock II


> Audio Out Jitter - Zero Samples (0.00ms)
> Start Lag - TBC

External Sync - Sequencer
Sync Source - Legacy MIDI Clock/Gridlock II


> Audio Out Jitter - 4 samples (0.08ms)
> Start Lag - TBC

External Sync - Sequencer
Sync Source - Clock/Gridlock II


> Audio Out Jitter - Zero Samples (0.00ms)
> Start Lag - TBC

750 Line 2px.png
  Waldorf Blofeld     Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - 11 samples (0.23ms) > Average Latency - 137 samples (3.62ms)    Sound Module Note Source - USB/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC

Waldorf Blofeld

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - 11 samples (0.23ms)
> Average Latency - 137 samples (3.62ms)

Sound Module
Note Source - USB/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

750 Line 2px.png
  Korg MS-20     Sound Module Source Trigger - Trigger/Gridlock II    > Trigger RX to Audio Out Jitter - Zero Samples (0.00ms) > Average Latency - Zero Samples (0.00ms)

Korg MS-20

Sound Module
Source Trigger - Trigger/Gridlock II

> Trigger RX to Audio Out Jitter - Zero Samples (0.00ms)
> Average Latency - Zero Samples (0.00ms)

750 Line 2px.png
  Moog 911    Envelope Generator  Source Trigger - S-Trig/Gridlock II    > S-Trig RX to Gate TX Jitter - Zero samples (0.00ms) > Average Latency - Zero Samples (0.00ms)

Moog 911

Envelope Generator
Source Trigger - S-Trig/Gridlock II

> S-Trig RX to Gate TX Jitter - Zero samples (0.00ms)
> Average Latency - Zero Samples (0.00ms)

750 Line 2px.png
  Roland JD-Xa     Internal Sync - Sequencer    > Audio Out Jitter - 29 samples (0.60ms)    External Sync - Sequencer Sync Source - Legacy MIDI Clock/Gridlock II    > Audio Out Jitter - 26 samples (0.53ms)    Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - 9 samples (0.18ms) > Average Latency - 119 samples (2.49ms)

Roland JD-Xa

Internal Sync - Sequencer

> Audio Out Jitter - 29 samples (0.60ms)

External Sync - Sequencer
Sync Source - Legacy MIDI Clock/Gridlock II

> Audio Out Jitter - 26 samples (0.53ms)

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - 9 samples (0.18ms)
> Average Latency - 119 samples (2.49ms)

750 Line 2px.png
  Roland System-1m     Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - 40 samples (0.83ms) > Average Latency - 138 samples (2.86ms)    Sound Module Note Source - Gate In/Gridlock II    > Gate RX to Audio Out Jitter - 4 samples (0.08ms) > Average Latency - 28 samples (0.58ms)

Roland System-1m

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - 40 samples (0.83ms)
> Average Latency - 138 samples (2.86ms)

Sound Module
Note Source - Gate In/Gridlock II

> Gate RX to Audio Out Jitter - 4 samples (0.08ms)
> Average Latency - 28 samples (0.58ms)

750 Line 2px.png
  Moog Voyager     Sound Module Note Source - Legacy MIDI/Gridlock II    > MIDI RX to Audio Out Jitter - 158 samples (3.29ms) > Average Latency - 260 samples (5.42ms)    Sound Module Note Source - USB/Gridlock II    > MIDI RX to Audio Out Jitter - TBC > Average Latency - TBC

Moog Voyager

Sound Module
Note Source - Legacy MIDI/Gridlock II

> MIDI RX to Audio Out Jitter - 158 samples (3.29ms)
> Average Latency - 260 samples (5.42ms)

Sound Module
Note Source - USB/Gridlock II

> MIDI RX to Audio Out Jitter - TBC
> Average Latency - TBC

750 Line 2px.png

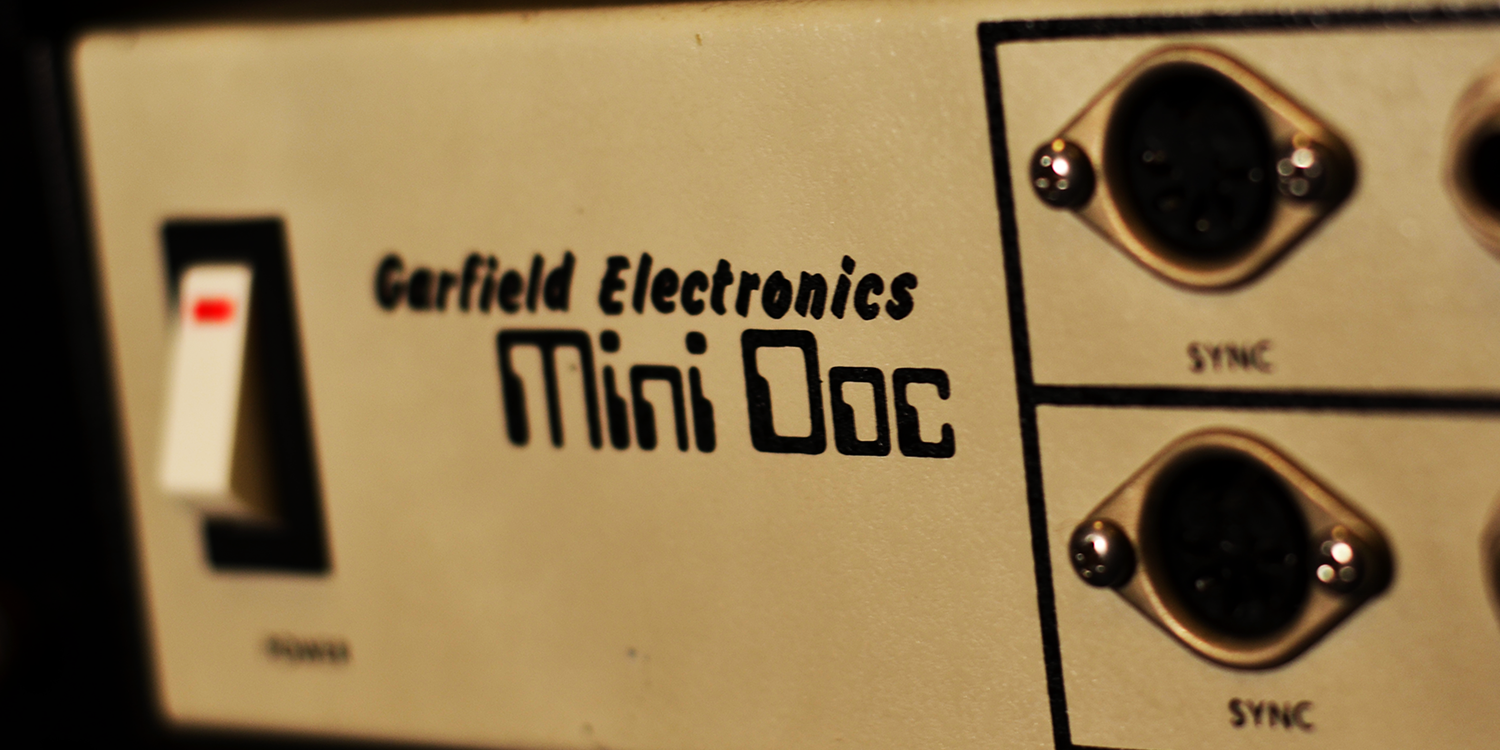

  Garfield Electronics Mini-Doc   > Clock RX to Clock TX Jitter - Zero samples (0.00ms) > Processing Latency: Zero samples (0.00ms)

Garfield Electronics Mini-Doc

> Clock RX to Clock TX Jitter - Zero samples (0.00ms)
> Processing Latency: Zero samples (0.00ms)



750 Line 2px.png


Bad Sync Cutout A.png


Cuisinair Rods C half.jpg
